Substitution expressions and data binding

Quite often we need to dynamically change components state in the form, depending on data. Let us draw a few examples.

  • Document edit form header dynamically changes when changing document margins.
  • Related controls (for example, Dictionary). If you, say, pick a value in the first Dictionary, selection list automatically gets limited in the second Dictionary.
  • You must add button (or link) into each Collection editor or Repeater component item, by clicking which you will be transferred to entity editing form.

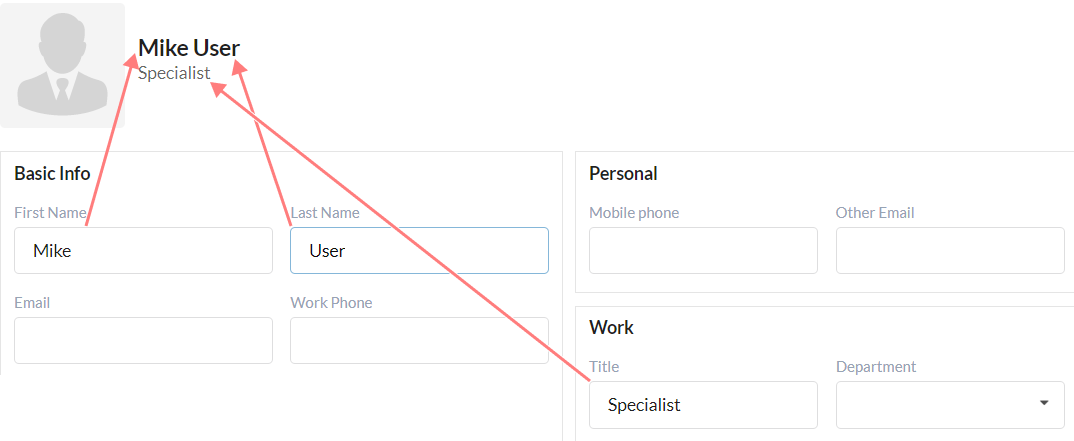

To replace component property value with form data object value, substitution expressions are used. In these expressions we simply write property name from data object in curly braces: '{propertyName}'. For example, we want employee's name and position to be constantly refreshed in the header of their personal info card. Like this:

Substitutions usage

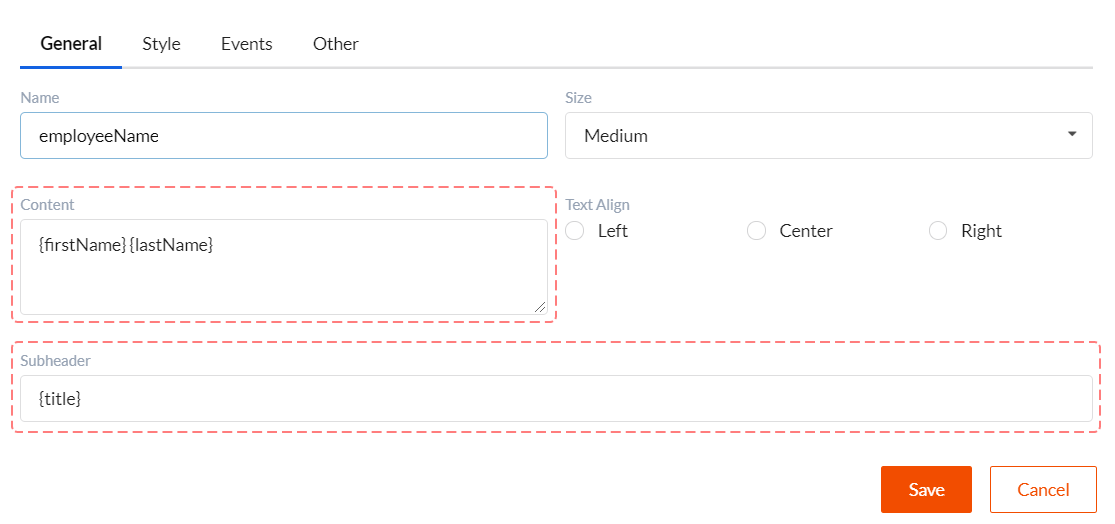

Content property of Header component must have the following value: '{firstName} {lastName}'. And Subheader property has '{title}', '{firstName}', '{lastName}' and '{title}' values, are property names of form data object. As we've already discussed here, when changing values in relevant inputs, form data object will be immediately updated, together with form header. We could write 'Employee {firstName} {lastName}' instead of '{firstName} {lastName}', and our header would be 'Employee Mike User' instead of 'Mike User'.

Substitutions properties

Substitution expressions can be used in the following component properties:

  • Header component. Content and Subheader properties.
  • Label component. Content property.
  • Message component. Content and Header properties.
  • Image component. Src and Href properties.
  • Breadcrumbs component. Table properties Items - Text and Url.
  • Dictionary component. Filter property.
  • Menu component. Table properties Items - Target and Title.
  • Static content component. Content property.

Substitution expressions can also be used in parameters for action chains which are handling the event. These parameters can be edited in the Events tab. See example below.

Case of using several related Dictionaries

Let's presume that we've got 2 Dictionary components in the form - Category and SubCategory. Category Dictionary is linked to Data Model (table) with Id and Name attributes. SubCategory Dictionary is linked to Data Model (table) with Id, Name and CategoryId attributes. I.e. this is a classifier, and we want subcategory list to be limited when selecting a category. To do this, we need only to set the following Filter property value for SubCategory Dictionary:

column: "CategoryId",
value: {category},
term: "="

We have suggested that Category Dictionary has got Name = 'category', and mapping has been created correctly. After that when changing Category Dictionary, 'category' data object property will also be changed. Next 'category' property value will be substituted into SubCategory Dictionary filter, and its selection list will be automatically filtered.

Substitutions usage in the collection components

In the Collection editor component you can create custom columns, in which you can add any other component and customize it. You can add any components to create form into Repeater, and repeater will draw form for each item. In components which are inside collection components you can also use substitution expressions. However, there is an additional option.

  • If you're using '{PropertyName}' expression, this property will be taken from the main form data object and not from collection item. For example, '{Id}' is primary key for the whole document displayed in the form.
  • If you're using '{row.PropertyName}' expression, this property will be taken from specific item displayed in collection component, i.e. it will be unique for each row. For example, '{row.Id}' is primary key for collection entity.

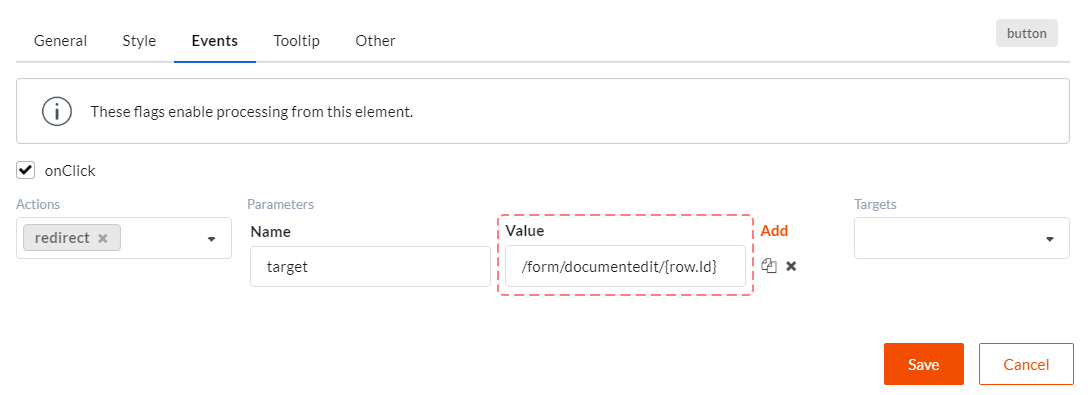

Let's discuss how to use this. For example, you've got Collection editor or Repeater. We want to display a button in each row which will open item editing from. We know that substitutions work in events parameters and that we can use '{row.}' expression. It is very simple. Event parameters must look as shown below.

Substitutions properties

There is a string in the 'target' parameter which contains '/form/documentedit/{row.Id}' expression, that is why clicking the button is transition to item editing page. Such approach is applied in the Documents form in the repeater which displays all documents in mobile layout.

Substitutions formatting

You can use date and number formatting in substitution expressions. It looks the following way: '{propertyName:format_expression}' or ' {row.propertyName:format_expression}'. There are the following options for 'format_expression':

  • Custom date format. For example, '{row.TransitionTime:DD.MM.YYYY HH:mm:ss}'. You can find other formatting options in moment.js library description.
  • Date formatting as described in the localization file. Use '{row.TransitionTime:local}' expression.
  • Custom number formatting. For example, '{Amount:0,000.00}'. You can find other formatting options in numeral.js library description.
